Semi-automatic Pallet Wrappers
Our Top Selling Pallet Wrappers

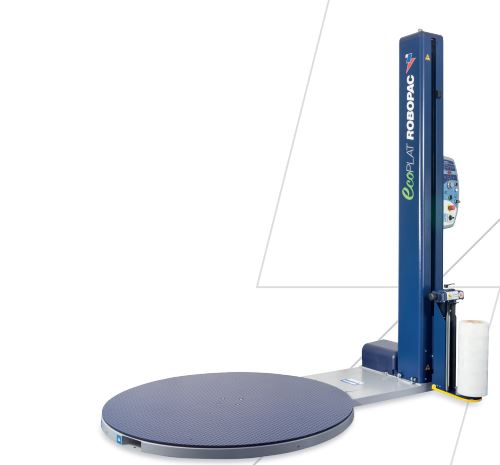

The Robopac Ecoplat Plus is a robust and easy-to-use semi-automatic pallet wrapping machine, designed for businesses looking to improve the consistency and efficiency of their pallet wrapping operation.
Stretchwrap is applied more consistently and economically by machine than by hand, helping to improve load stability while reducing unnecessary film use. The Ecoplat Plus FRD uses a manually adjustable mechanical brake film carriage, allowing the operator to control film tension to suit different pallet loads and film types.
For further savings, the Ecoplat Plus can be used with a suitable high-performance stretch film. Selecting the correct film and machine settings can significantly reduce the amount of plastic required per pallet compared with conventional hand wrapping, while providing a more consistent wrapped load.
General Specification
Turntable diameter: 1500mm standard; 1650mm optional
Maximum pallet size (L x W): 800mm x 1200mm standard; 1000mm x 1200mm optional
Maximum pallet height: 2200mm standard; 2400mm optional
Maximum pallet weight: 2000kg (FRD)
Turntable speed: 4–10 rpm
Film carriage speed: 1.4–4m/min
Power supply: 230V single phase
Maximum film reel dimensions: 500mm high x 300mm diameter
Maximum film reel weight: 20kg
Controls
LED display with JOG parameter selector
Upward and downward wrapping cycle
Upward-only or downward-only wrapping cycle
Top sheet cycle
Manual cycle
Eco cycle with recorded parameters
Adjustable top and bottom wraps
Adjustable reinforcement wraps
Variable turntable rotation speed
Variable film carriage speed
Automatic pallet height detection by photocell
Carriage ergonomic stop
Emergency stop
IP54 protection against dust and water
Film Carriage
The Ecoplat Plus FRD is fitted with a mechanical brake film carriage. Film tension is manually adjustable, with an indicator to help the operator maintain a consistent setting.
A tension release lever allows the film to be pulled from the carriage and attached to the pallet without changing the selected tension setting.
Optional Extras
1650mm turntable for larger pallets
Extended column for pallets up to 2400mm high
Loading ramp for use with hand pallet trucks
Net film carriage for ventilated loads
R-Connect remote monitoring system
Weighing system
Alternative photocell/altimeter configuration
We have been selling the Siat One Wrap semi-automatic pallet wrapper for over 10 years. Used in conjunction with a high-performance film, it provides all the benefits of a machine with a power pre-stretch unit at about half the cost.
Stretchwrap is applied more consistently and economically by machine than by hand and, even using a standard machine film, the cost per pallet wrapped can be significantly lower. The biggest savings come from using a high-performance film with the One Wrap, which can reduce the amount of plastic used by as much as 60% and substantially cut the cost per pallet wrapped.
General Specification
- Overall dimensions (LxWxH): 2750mm x 1650mm x 2400mm
- Turntable dimensions: 1650mm diameter x 75mm high
- Maximum pallet size (LxWxH): 1200mm x 1000mm x 2100mm
- Maximum pallet weight: 2000kg
Controls
- Manual or auto mode
- Variable turntable speed with soft start and fixed stop
- Photocell for pallet height detection
- Choice of two auto-wrap patterns
- Timers for top and bottom wraps
Options
- Extended column for pallets up to 2400mm tall
- 1800mm turntable for wider pallets
- Anti-static brush
- Electromagnetic core brake film carriage
- Loading ramp
- Pit frame
- Photo cell for dark pallets
